AUcontrols.

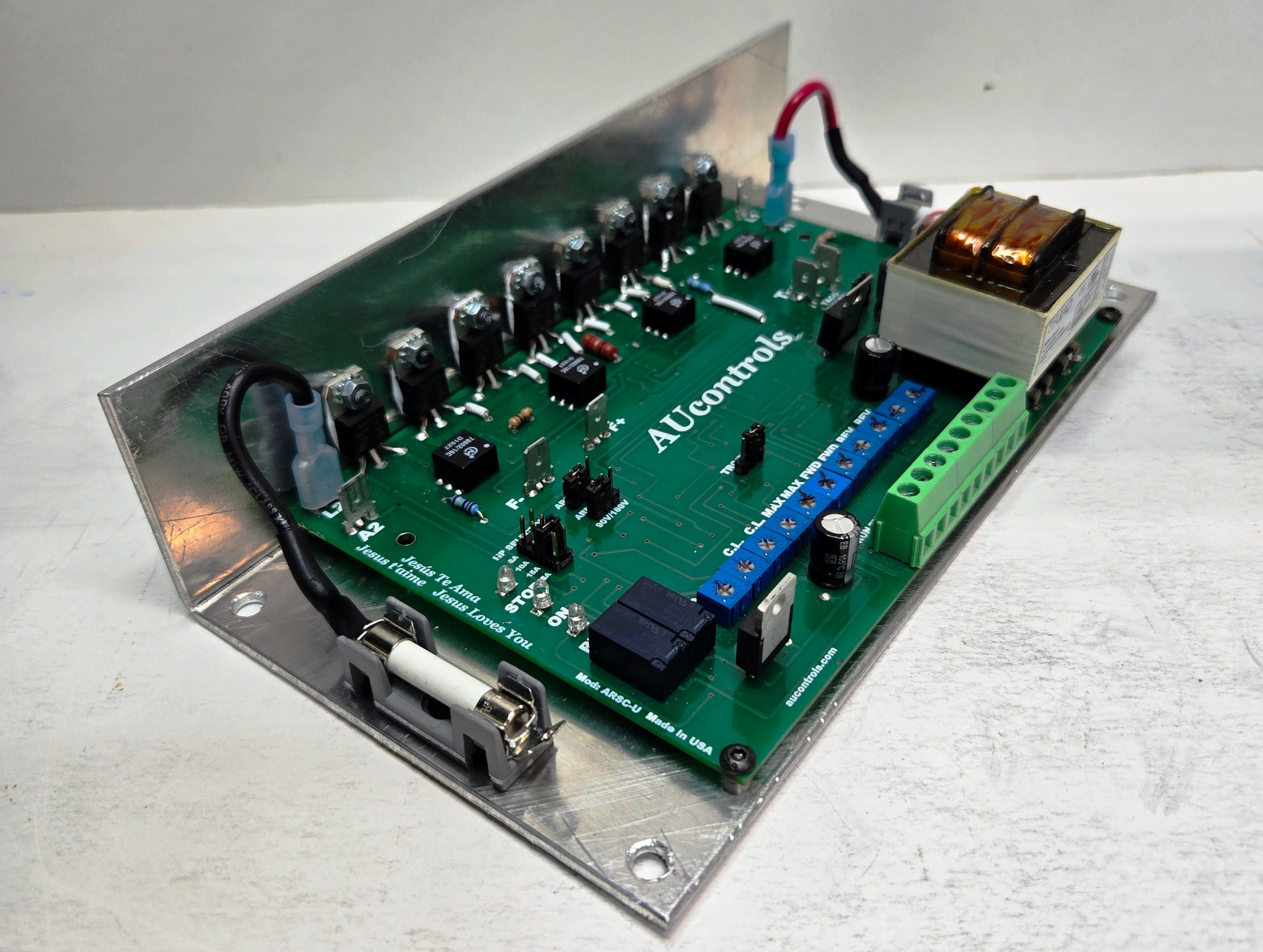

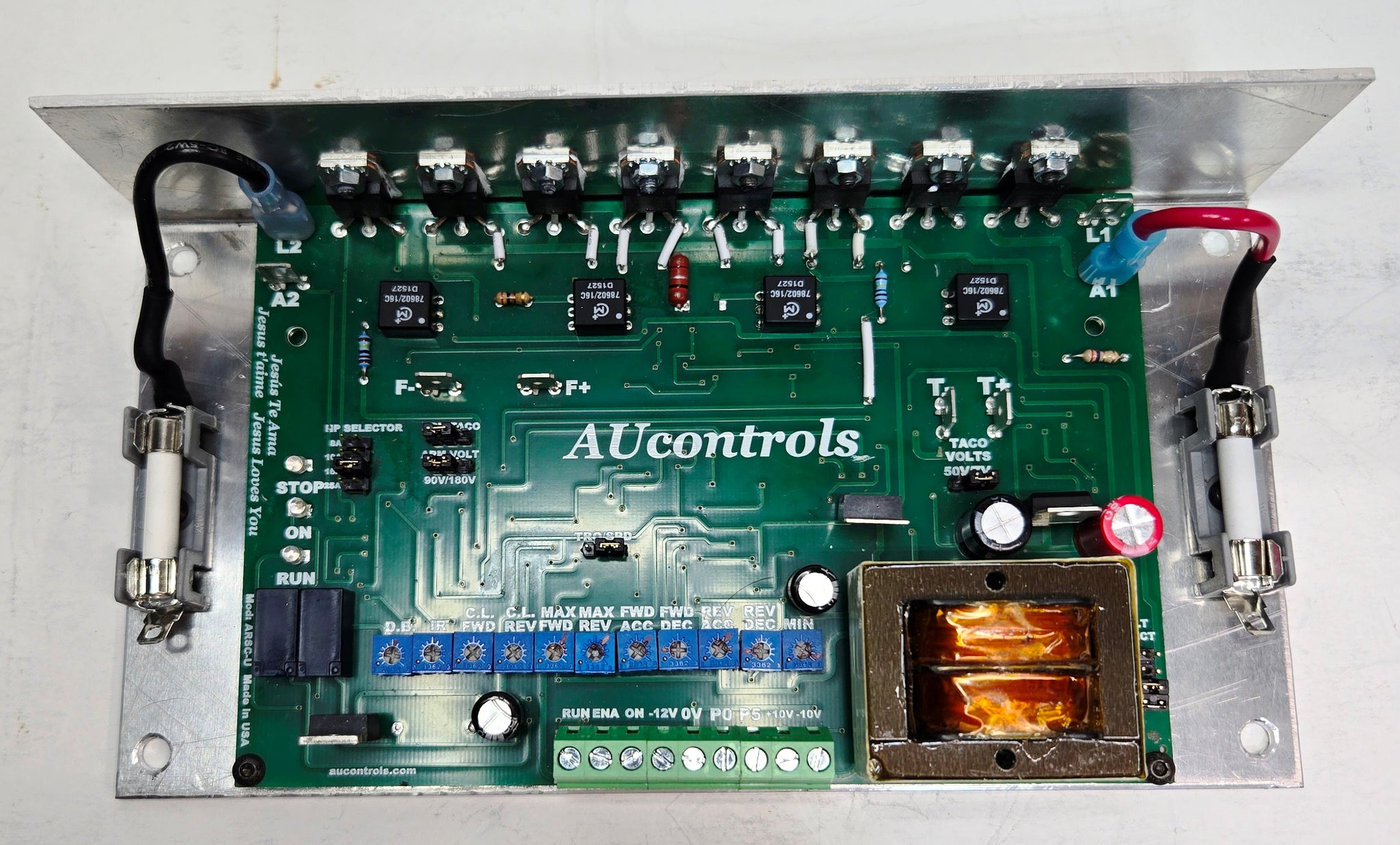

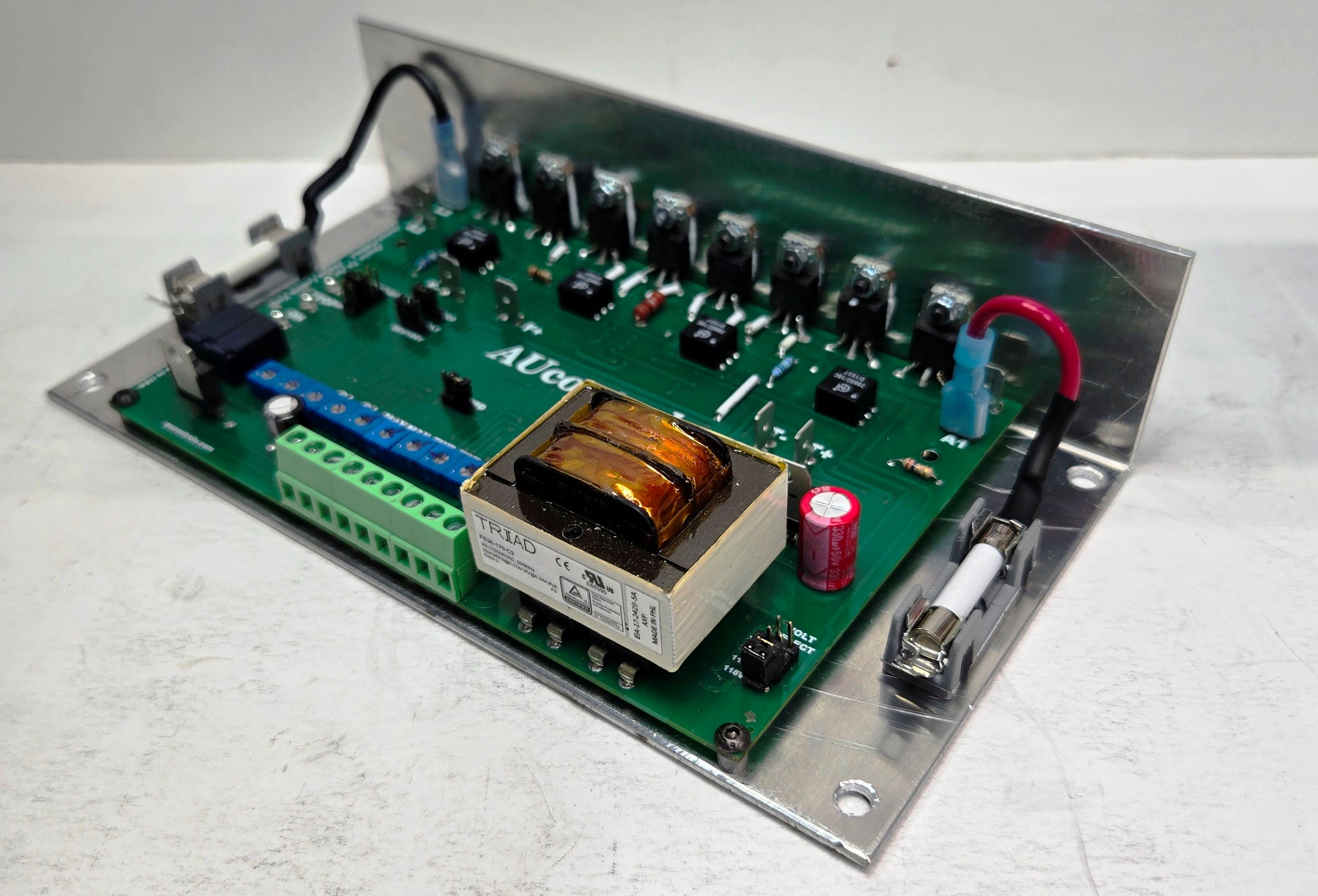

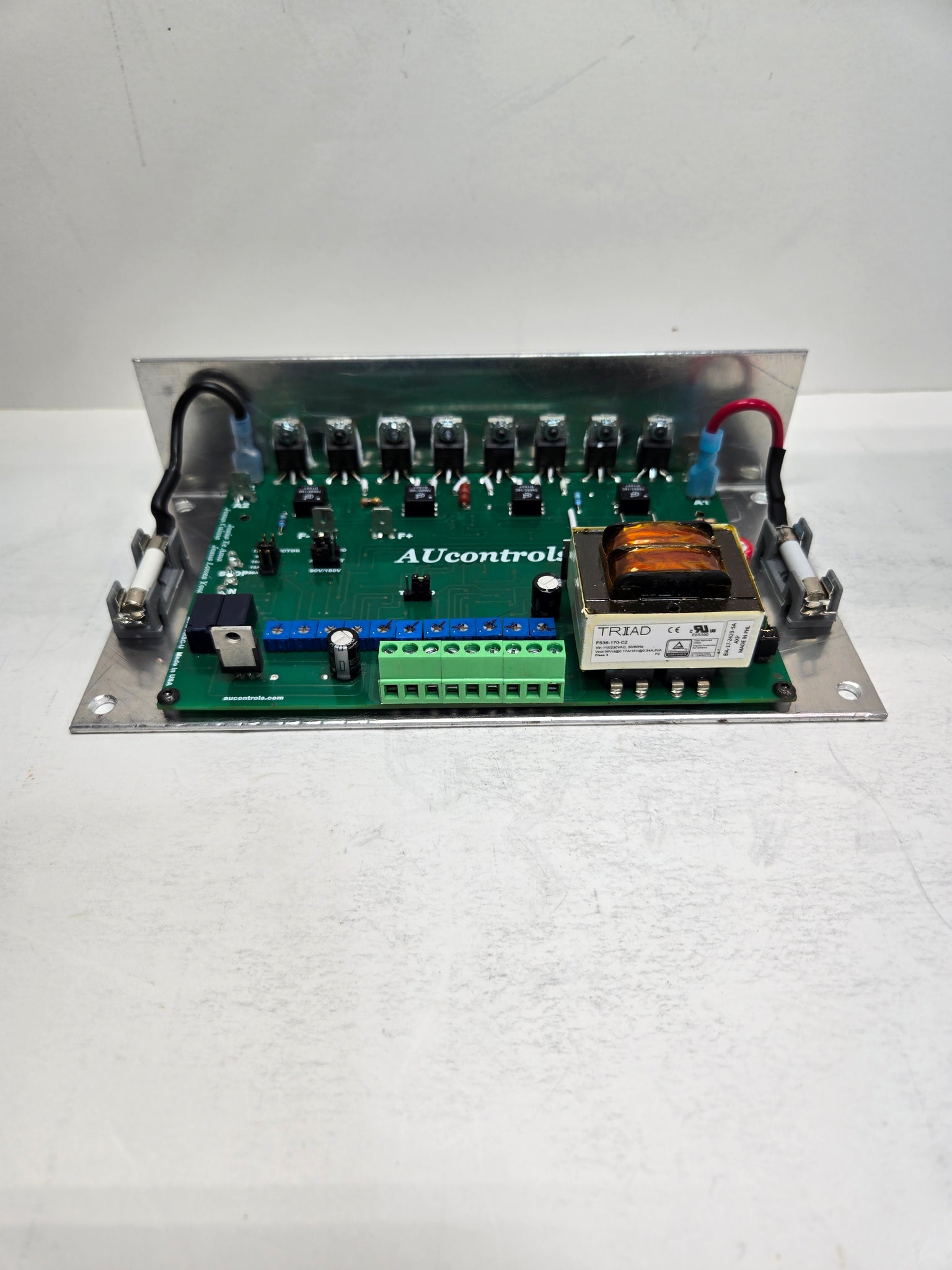

REGENERATIVE REVERSIBLE Speed Control for 1/4~1.5HP - 90V PM or Shunt wound DC Motors, Mod: ASCR1-1.5
Made in USA.
H.P. 1.5, KW: 1.118
Power Input: 115 VAC, 50/60 Hz. Single Phase.
Output: 0~ 90 VDC, 17 A.
Field: 50/100VDC, 1 A.
Feedback: Armature/Tachometer.
Controls Speed and Torque in both directions.
Dimensions: 8" x 4.25" x 2"
1 Year Warranty
REGENERATIVE Speed Controls for 1/4 ~ 1.5HP - 90V DC Motors with PM or Shunt Wound Field, open Chassis. Control Speed and Rotation direction Electronicaly.
Regenerative Drives are used in many appications where you need the Motor to move in both directions without Electromechanical Contactors and pump back power to the Power Company during Decelaration or when stoping.
Its 4 quadrants operation allows the motor to operate in both directions at full power, IT CAN REPLACE SERVO-DRIVES WITH DC MOTORS IN MAY APPLICATIONS.
>>> PLEASE SPECIFY HP & VOLTAGE WHEN ORDERING<<<
