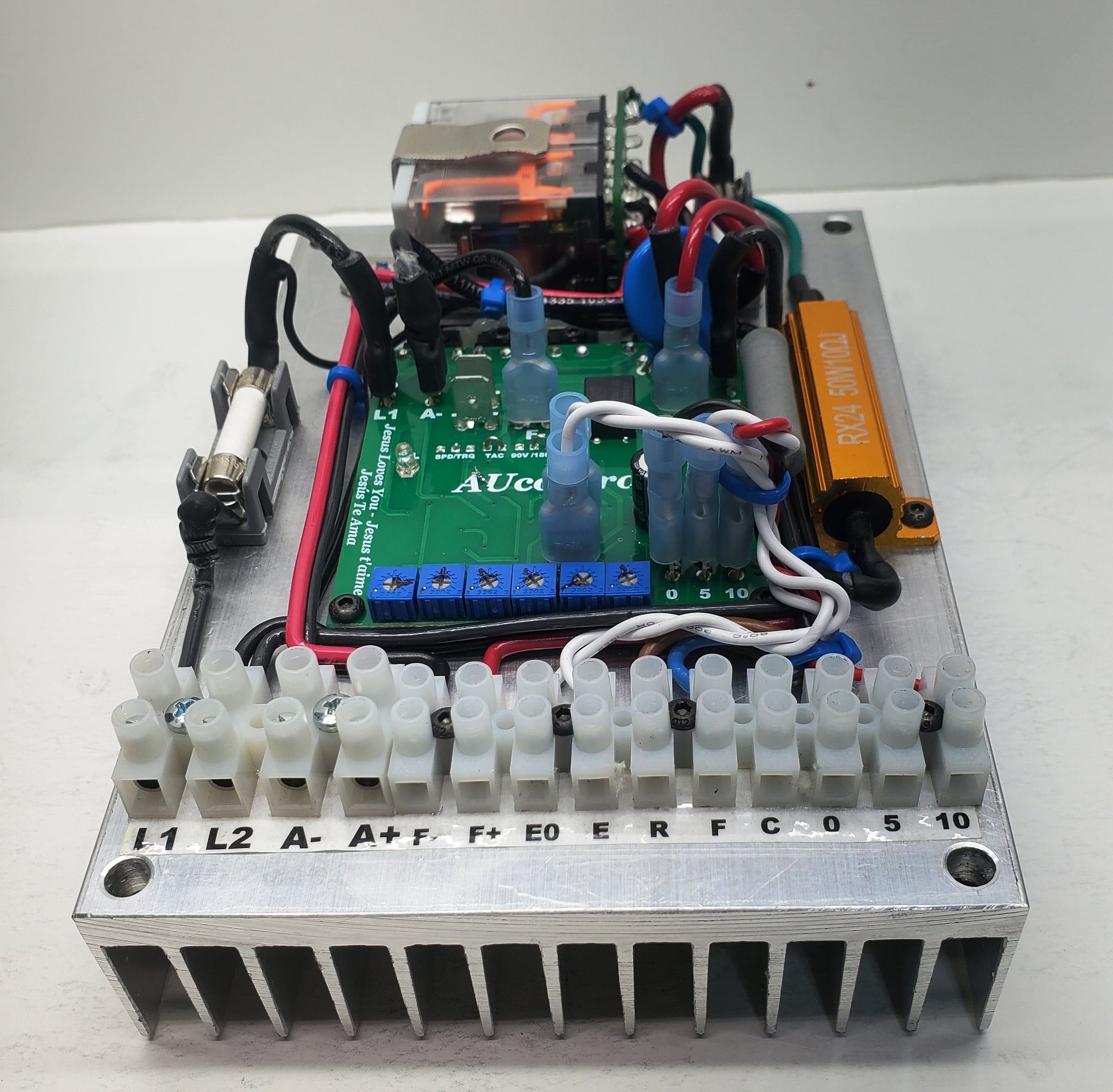

Reversible DC Motor Speed Control
Industrial Duty, Made in USA.
High-performance analog speed controller designed for use with 1 HP, 90V DC motors. Suitable for Permanent Magnet or Shunt Wound DC motors. Ideal for demanding industrial applications requiring good speed control and direction reversal.
Specifications:
- Model: ASC1-1R
- Horsepower: 1 HP (.750 kW)
- Input Power: 115 VAC, 50/60 Hz, Single Phase
- Armature Output: 0–90 VDC, 15 A
- Field Output: 50/100 VDC, 2 A
- Instant Overload Protection (IOP) Prevents Drive damage
- Power Input & Armature Output Fuse Protection
- Feedback Options: Armature / Tachometer
- Speed Command Input: 0–10 VDC
- Dimensions: 7" × 5" × 4"
- Weight: Approx. 3.5 lbs
- Warranty: 1 Year
- Includes: Hesitation Toggle Switch (FWD-STP-REV), 10K Speed Pot, Manual and Connection schematics.
NOTE:
For unattended or PLC-controlled machinery, AUcontrols offers
the AAPB Anti-Plug Board (Zero Movement)
-sold separately-
This board prevents the drive from reversing before the machine stops completely, protecting your equipment from severe drive damage.
Contact us if you have any questions at: info@aucontrols.com
