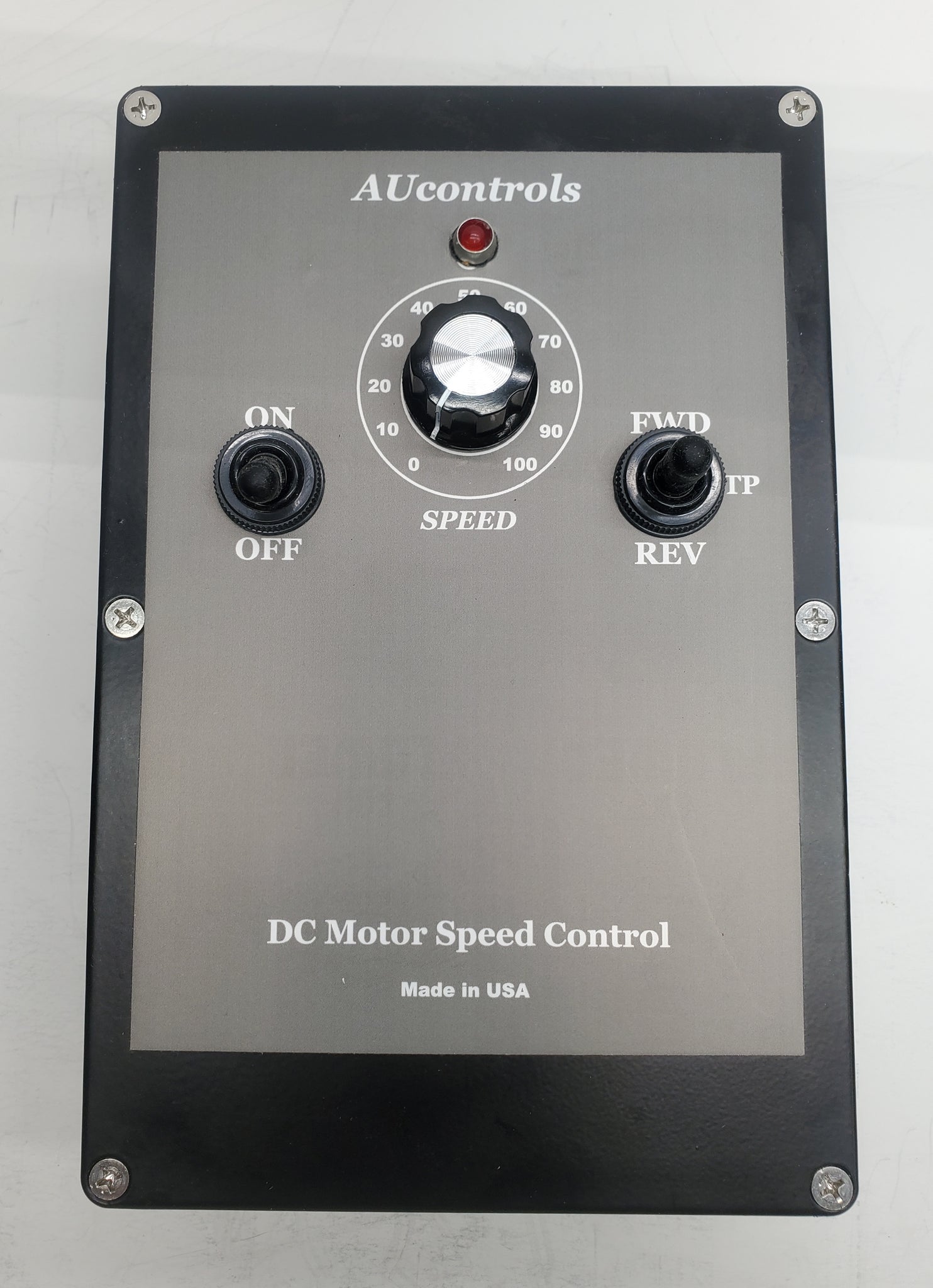

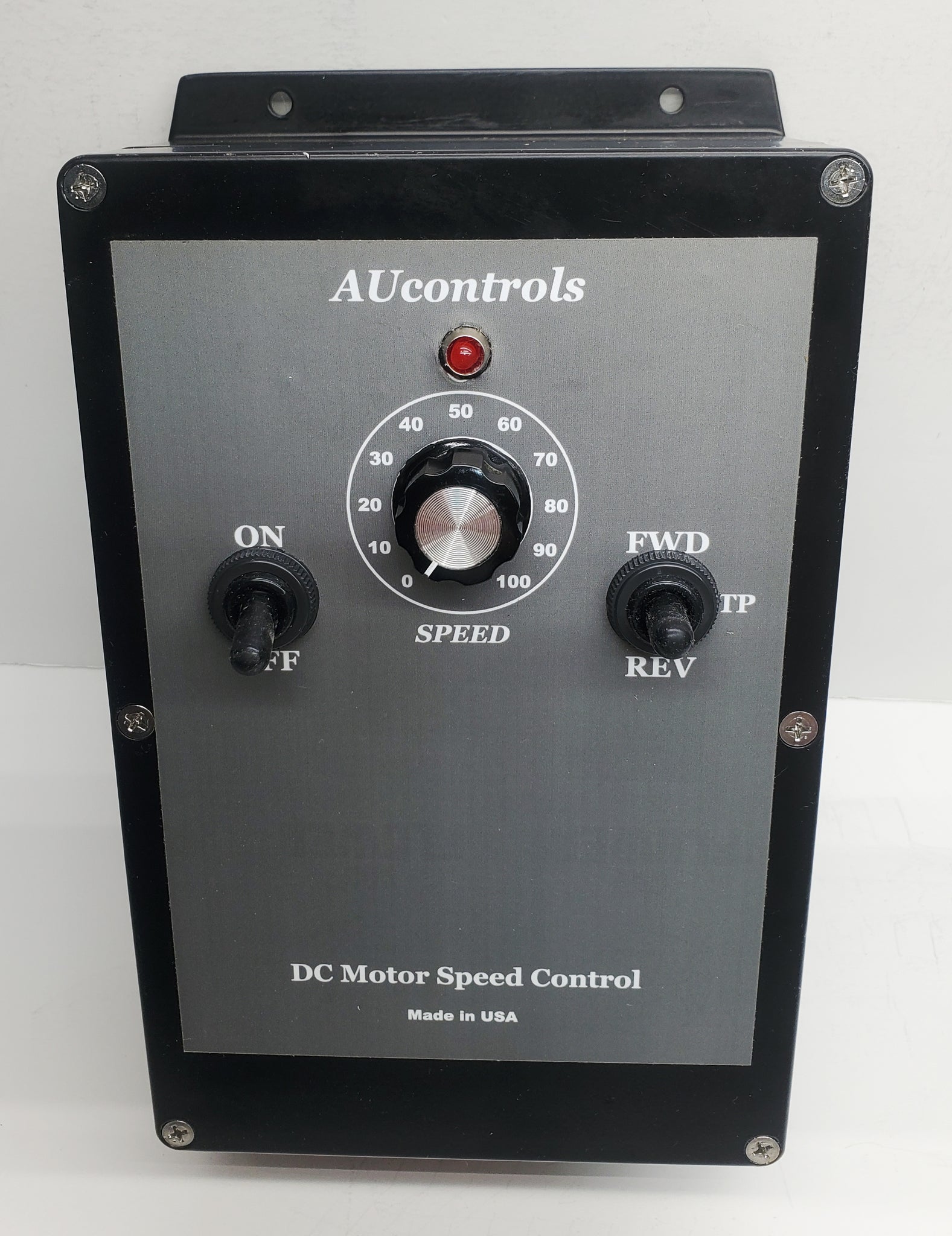

REVERSIBLE DC Speed Control for 1 to 3HP-180VDC Motors Model: ASCB2-3R-3
General-Purpose Drive for Permanent Magnet or Shunt-Wound field, DC Motors, in NEMA 3 – Made in USA
Specifications:
- Model: ASCB2-3R-3
- Horsepower: 3HP
- Power Rating: 2.240kW
- Enclosure: NEMA 3
- Power Input: 208–240 VAC, 50/60 Hz, Single Phase
- Output: 0–180 VDC, 17 Amps
- Field Output: 50/100 VDC @ 1 Amp
- Control Method: Potentiometer/PLC→Requires Isolation Board AIB-U
- Instant Overload Protection (IOP) Prevents Drive damage
- Input Power & Armature Output Fuse Protections
- Feedback Options: Armature / Tachogenerator
- Dimensions: 9.5" x 5.75" x 4.75"
- Weight: Approx. 4.0 lbs
- Warranty: 1 Year under normal operating conditions
>>>PLEASE SPECIFY HP WHEN ORDERING<<<
NOTE:
For unattended or PLC-controlled machinery, AUcontrols offers
the AAPB Anti-Plug Board (Zero Movement)
-sold separately-
This board prevents the drive from reversing before the machine stops completely, protecting your equipment from severe drive damage.
Custom Drives Built to Order
We design and manufacture custom drives tailored to your specific application needs.
