AUcontrols.

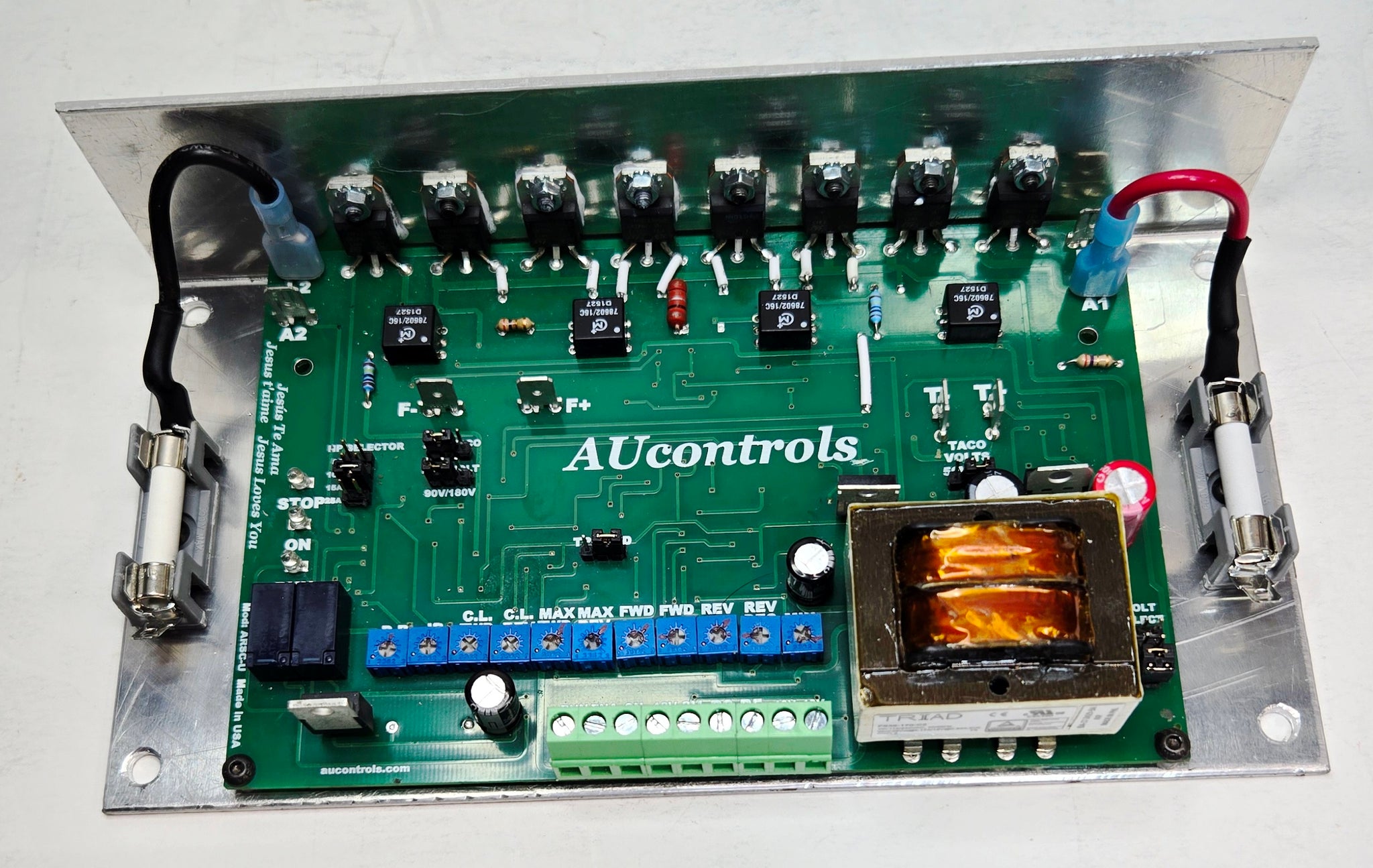

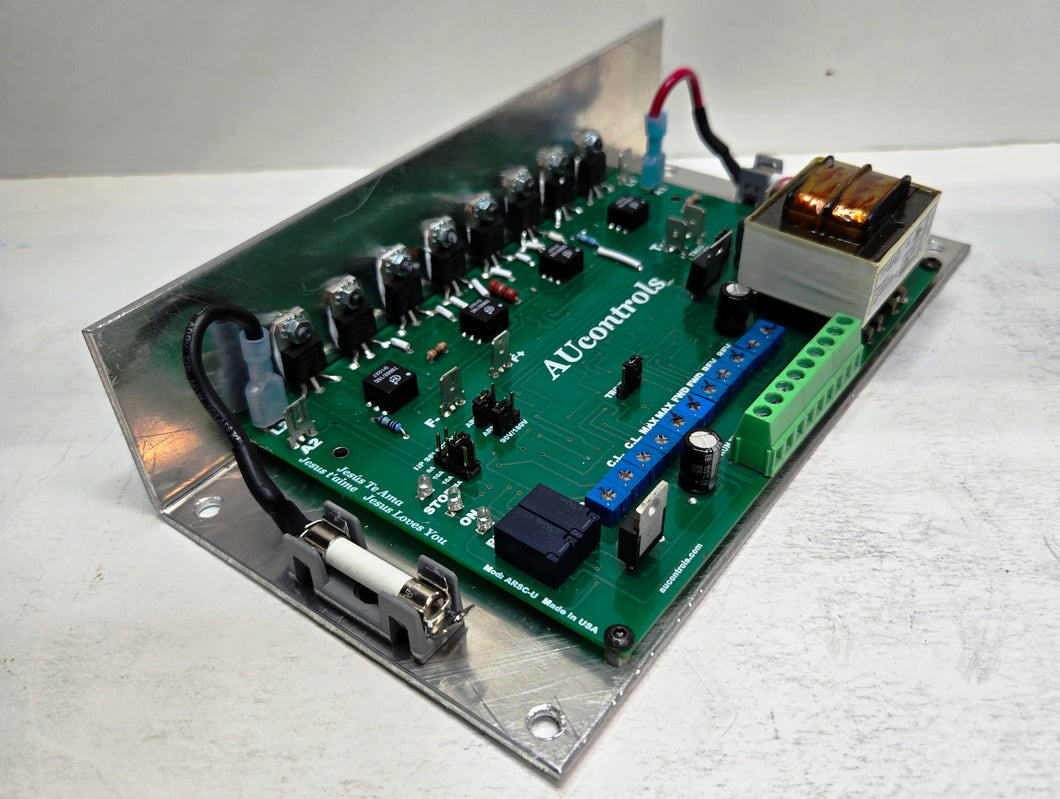

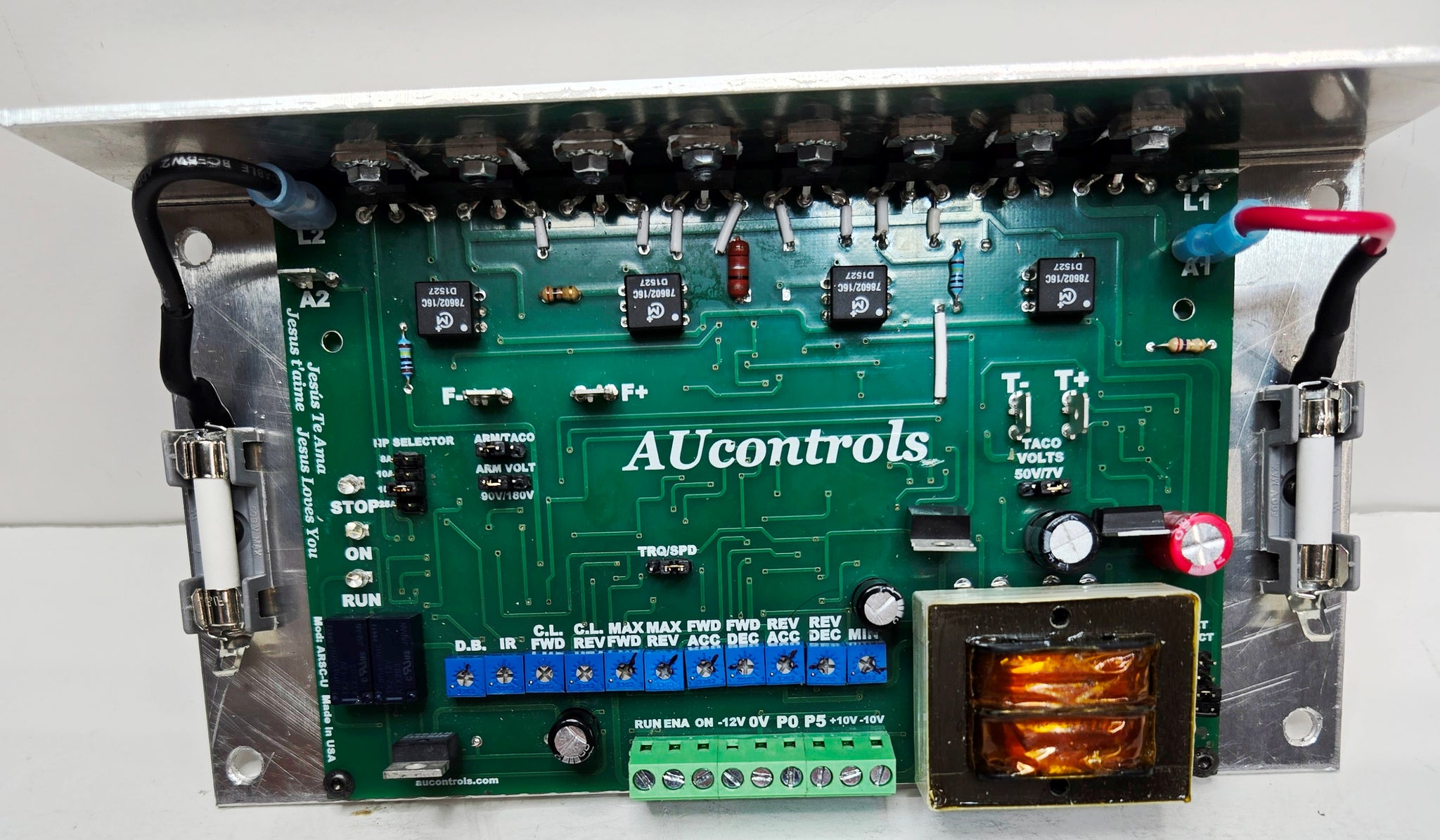

REGENERATIVE REVERSIBLE Speed Control for 3HP-180V PM or Shunt wound DC Motors, Mod: ASCR2-3
Made in USA.
H.P. 3, KW: 2.237
Power Input: 240 VAC, 50/60 Hz. Single Phase.
Output: 0~ 180 VDC, 17 A.
Field: 100/200 VDC, 1 A.
Feedback: Armature/Tachometer.
Controls Speed and Torque in both directions.
Dimensions: 8" x 4.25" x 2"
1 Year Warranty
REGENERATIVE Speed Controls for 1/4 ~ 1.5HP at 90V and for 1/4 ~ 3HP at 180V DC Motors with PM or Shunt Wound Field, open Chassis. Control Speed and Rotation direction Electronicaly.
Regenerative Drives are used in many appications where you need the Motor to move in both directions without Electromechanical Contactors and pump back power to the Power Company during Decelaration or when stoping.
Its 4 quadrants operation allows the motor to operate in both directions at full power, IT CAN REPLACE SERVO-DRIVES WITH DC MOTORS IN MANY APPLICATIONS.
>>> PLEASE SPECIFY HP & VOLTAGE WHEN ORDERING<<<
