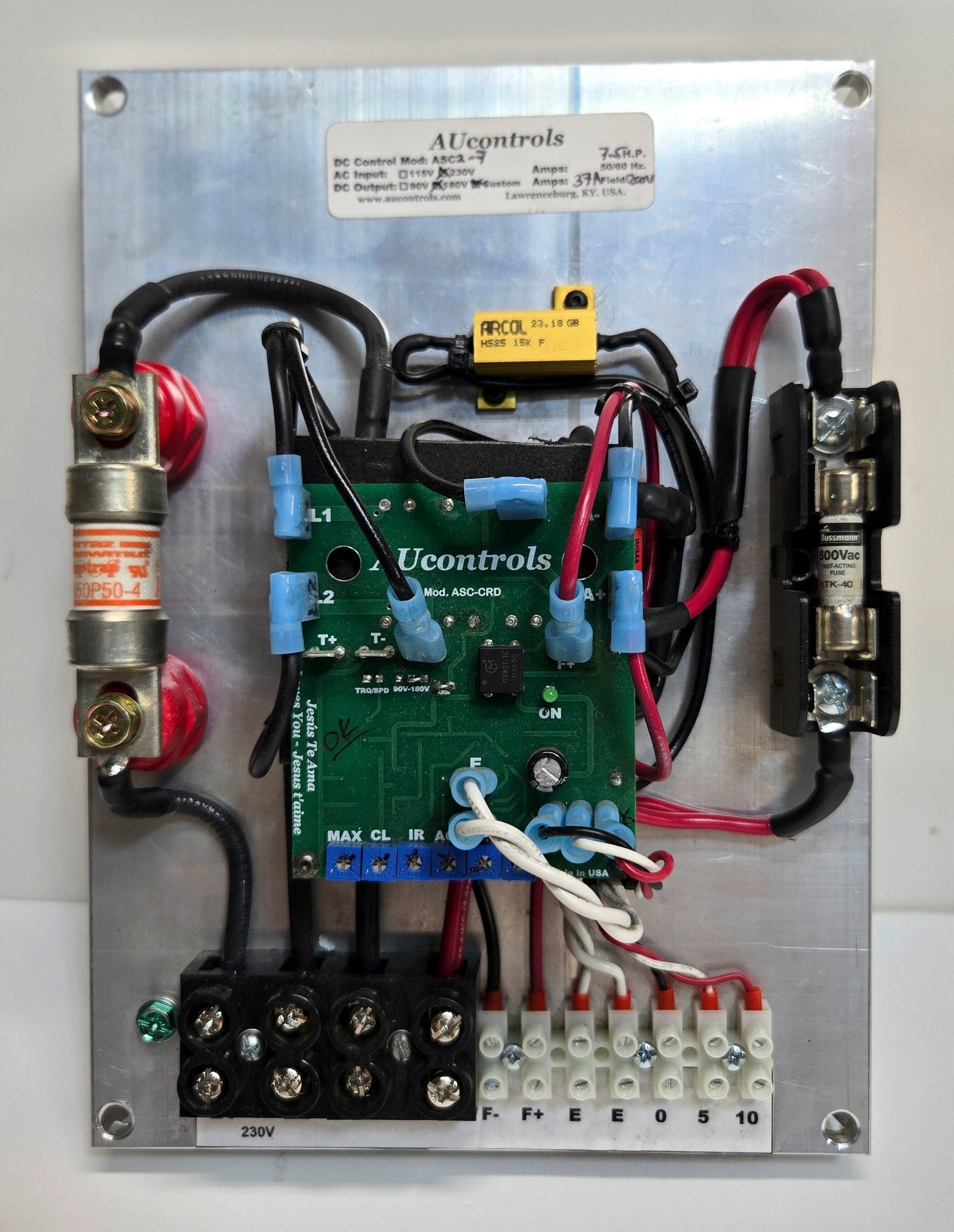

DC Torque Control for 7.5 HP-180V DC Motors, Chassis Open.
Specifications:
DC Drive Model: ASC2-7T Chassis Open, Made in USA.
H.P: 7.5, 5.6KW.
Power Input: 208~240V AC-50 Amp. / 50/60Hz.
Output Armature: 0~180V DC / 40 Amps.
Field: 100/200V DC / 3 Amps.
Power Input and Armature Fuse Protection.
Dimensions: 10” x 7.5” x 5”
Approx. Weight: 7 Lbs.
Warranty: 1 Year under normal operation conditions.
